| Ty Miles High Speed Broaching Systems |
|
Ty Miles Inc. offers a full line of various sizes of new broaching and metal working machinery. We also update, modernize, and re-tool existing broach machinery, by using the latest, state of the art, hydraulic, pneumatic, and electrical components that are available. We also offer "IN HOUSE" Production Broaching Capability, for either Short or Long Term Production Runs. |
||
 |
 |
|
| MRS24-48-90 | MBTU20-36-60R | |

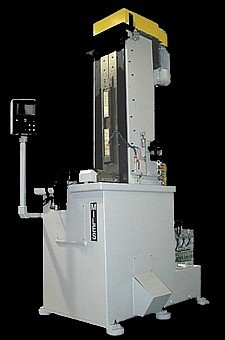

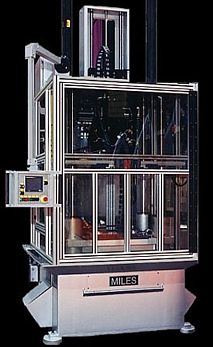

| CNC BROACH MACHINE | HEAVY DUTY TABLE UP MACHINE | |
| CNC Controlled ROLLER SCREW MACHINE offers precise control over the location and speed of the broach and fixture... coupled with a CNC controlled fixture table to produce intricate forms and / or other typical broach cuts with standard broaching tools. | Ideal for flexible cell users since loading is done at operator waist height. Broaching tool firmly anchored at both ends during the cut. Fixtured part PULLED UP over a stationary broaching tool. Massive 4-poster die set type machine construction insures straight line broach pull. | |
 |
 |
|
| MBLD10-36-120R | MB10-36-120R | |

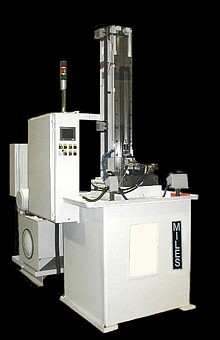

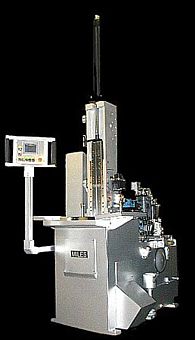

| 36" Rabbit | Standard 36" | |
| This model is a 5 ton machine, 36” of ram stroke, traveling at 120 FPM, tooled up with a hydraulic slide table. The 36 model is a very versatile machine, capable of both external and internal broaching applications. | This is our standard model, shown as a 5 ton machine, 36” of ram stroke, traveling at 120 FPM. We offer our standard models, along with heavy duty models, depending on the tonnage required for the job. | |
|
|
 |
|
| MBLD10-24-120R | MBLD4-18-150R | |

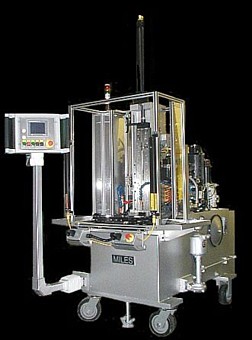

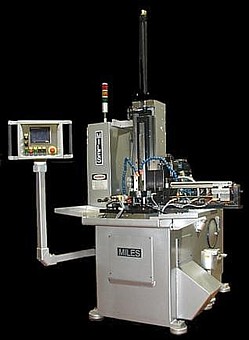

| 24" Rabbit | 18" Rabbit on Wheels | |
| This model is a 5 ton machine, 24” of ram stroke, traveling at 120 FPM, tooled up with a magazine type fixture. The Rabbit line of light duty machines is available in either 12, 18, 24, 30, 36, 42, or 48 inches of ram stroke. | This model is a 2 ton machine, 18” of ram stroke, traveling at 150 FPM, tooled up with a hydraulic tilt table. The 18 model can also be mounted on wheels, for easy mobility in your shop . | |
